Description

Wi-Fi Standards IEEE 802.11 a/b/g/n/ac(Wave-2)/ax
Antennas
6 single frequency internal antennas
2.4GHz 3.65dBi
5GHz 5.26dBi
Wi-Fi Data Rates
5G:
IEEE802.11ax:8.6Mbps to 4804Mbps
IEEE 802.11ac: 6.5 Mbps to 3464 Mbps
IEEE 802.11n: 6.5Mbps to 600Mbps
IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
2.4G:
IEEE 802.11ax:8.6Mbps to 573.5Mbps
IEEE 802.11n: 6.5Mbps to 300Mbps
IEEE 802.11b: 1, 2, 5.5, 11 Mbps
IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
*Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio
interference in the operating environment and mix of devices in the network
Frequency Bands
2.4GHz Radio: 2412 – 2484 MHz(WIFI)
5GHz Radio: 5180 – 5825 MHz
*Not all frequency bands can be used in all regions
Channel Bandwidth 2.4G: 20 and 40 MHz
5G: 20, 40 , 80 and 160MHz
Wi-Fi and System Security
WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/
control lockdown via digital signatures, unique security certificate and random default password per
device
MIMO 2×2:2 2.4GHz (MU-MIMO)
4×4:4 5GHz (MU-MIMO)
Coverage Range Up to 175 meters
*coverage range can vary based on environment
Maximum TX Power
2.4G: 25dBm
5G: 27dBm
*Maximum power varies by country, frequency band and MCS rate
Receiver Sensitivity
2.4G
802.11b: -96dBm@1Mbps, -88dBm@11Mbps; 802.11g: -93dBm @6Mbps, -75dBm@54Mbps;
802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7
802.11ax 20MHz: -60dBm @ MCS11; 802.11ax 40MHz: -58dBm @MCS11
5G
802.11a: -92dBm @6Mbps, -74dBm @54Mbps;
802.11n 20MHz: -74dBm @MCS7; 802.11n 40MHz:-71dBm @MCS7
802.11ac 20MHz: -67dBm@MCS8; 802.11ac: HT40:- 63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9
802.11ax 20MHz: -60dBm @MCS11; 802.11ax 40MHz: -58dBm @MCS11;802.11ax 80MHz: -56dBm @
MCS11
SSIDs 32 SSIDs total, 16 per radio (2.4GHz & 5GHz)
Concurrent Clients 256

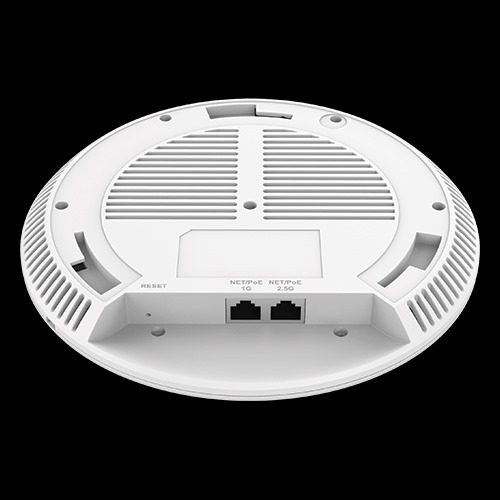

Network Interfaces 1x autosensing 10/100/1000 Base-T Ethernet Port
1x autosensing 10/100/1000/2500 Base-T Ethernet Port
Auxiliary Ports 1x Reset Pinhole, 1x Kensington lock
Mounting Indoor wall mount or ceiling mount, kits included
LEDs 3 tri-color LEDs for device tracking and status indication
Network Protocols IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS 802.11e/WMM, VLAN, TOS
Network Management
Embedded controller can manage up to 50 local GWN APs
GWN.Cloud offers a free cloud management platform for unlimited GWN APs
GWN Manager offers premise-based software controller for up to 3,000 GWN APs
Power and Green Energy Efficiency Supports 802.3az PoE 802.3af/ 802.3at;
Maximum Power Consumption: 16W
Environmental
Operation: -10°C to 45°C
Storage: -30°C to 60°C
Humidity: 5% to 95% Non-condensing
Physical Unit Dimension: 205.3mm(L)x205.3mm(W)x45.9mm(H); Unit Weight: 540g
Entire Package Dimension: 258mm(L)x247mm(W)x86mm(H); Entire Package Weight: 910g

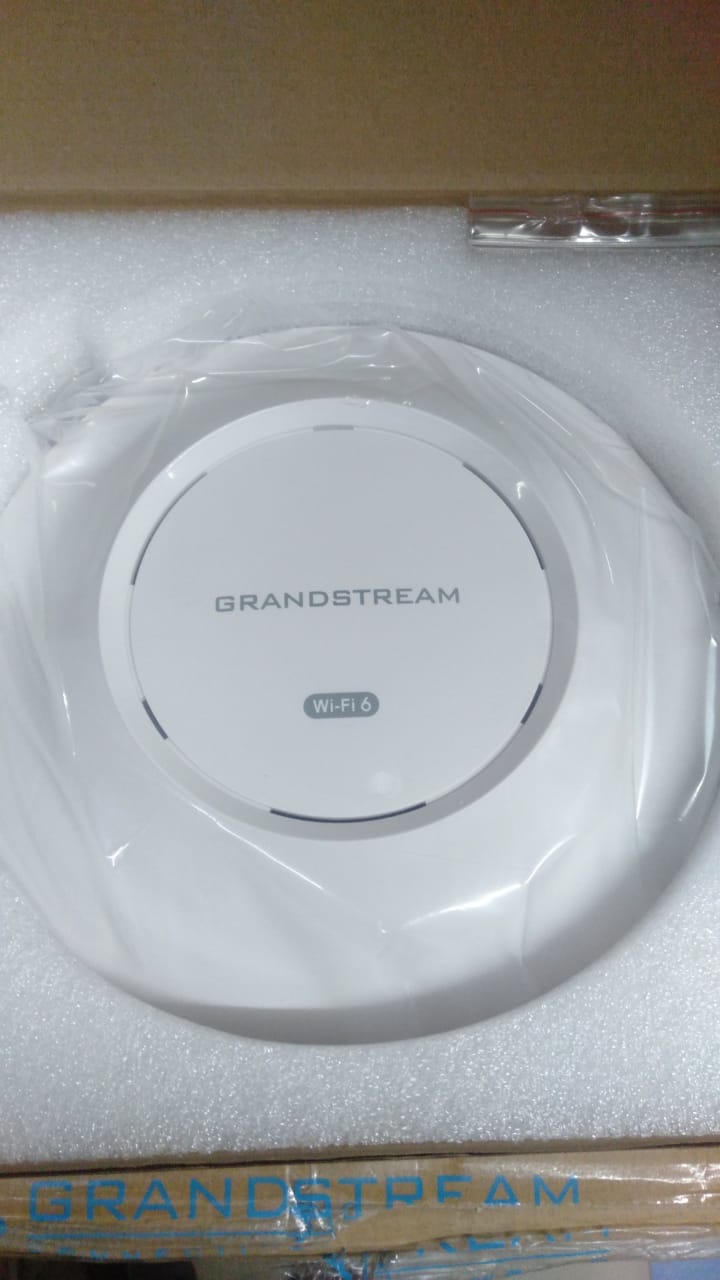

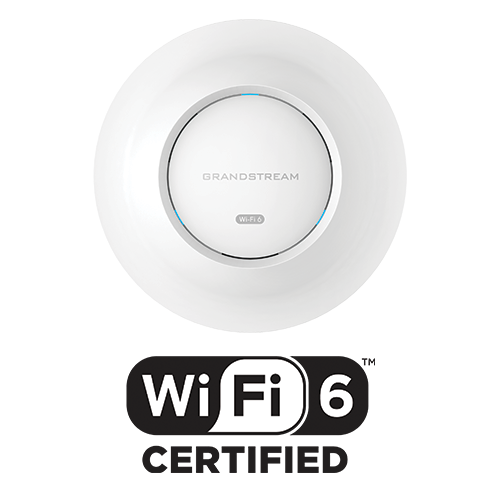

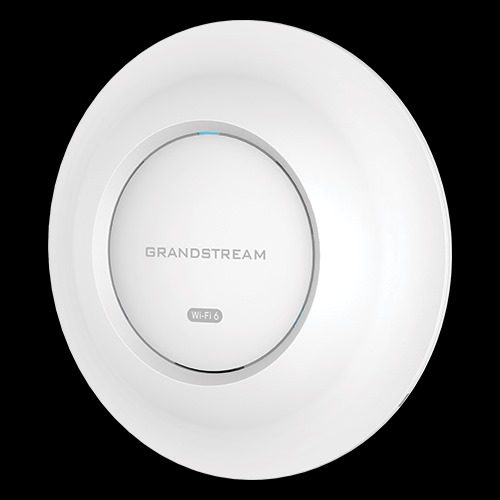

Package Content GWN7662 indoor Wi-Fi 6 Wireless AP, Mounting Kits, Quick Installation Guide
Compliance FCC, CE, RCM, IC, UKCA
