Description
| Performance | |||
| Switching Capacity | 1Gbps | ||
| Throughput | 0.744Mpps | ||
| Packet Buffer | 448K | ||
| MAC Address | 2K | ||
| Jumbo Frame | 2Kbytes | ||
| Transfer Mode | Store and forward | ||
| MTBF | 100000 hour | ||
| Standard | |||
| Network Protocols | IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3x (Flow control) |
||
| PoE Protocol | IEEE802.3af （15.4W） IEEE802.3at （30W） |
||
| Industry Standard | EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD)、 EN61000-4-4 (EFT)、 EN61000-4-5 (Surge) |
||
| Network Medium | 10Base-T : Cat3、4、5 or above UTP(≤100m) 100Base-TX : Cat5 or above UTP(≤100m) |
||
| Indication | |||
| LED Indicators | PWR（power supply），SW（DIP），1-5 Green（Link & Data） | ||

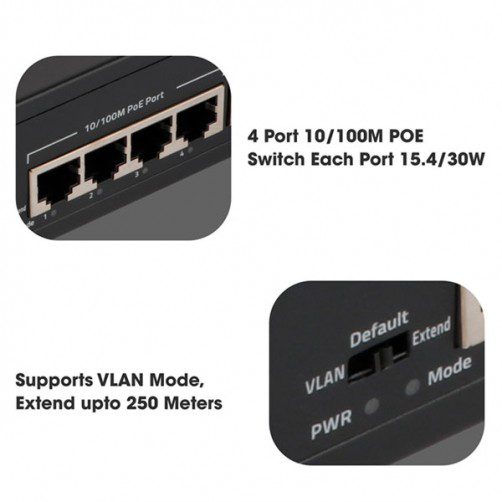

| DIP Switch | VLAN：Port isolation mode. In this mode, the PoE ports (1-4) of the switch cannot communicate with each other, and can only communicate with the UP-link port. The port AI mode is turned on. Normal: Normal mode, all port can communicate with each other, the transmission distance is within 100 meters, the transmission rate is 10M / 100M adaptive; The port AI mode is closed. Extend：Link extension mode, 1-4 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M, and the port AI mode is turned on |
||
| Environment | |||
| Working Environment | Working Temperature：-20~50°C Storage Temperature：-40~85°C Working Humidity ：10%~90%，non-condensing Storage Temperature：5%~90%，non-condensing Working Height：Maximum10,000 feet Storage height：Maximum 10,000 feet |
||
| Mechanical | |||
| Structure Size | Product Dimension (L*W*H): 200mm*118mm*44mm Package Dimension (L*W*H): 245mm*190mm*60mm N.W：0.5kg G.W：0.8kg |
||
| Packing Info | Carton MEAS：505*320*400mm Packing Qty：20 units Packing Weight：17KG |
||
| Power Voltage | Input Voltage ：AC 100-240 V Power supply：52V1.25A Power Budget: 65W |
||
| Package List | Switch 1 pcs, Power cord 1 pcs, User manual 1 pcs | ||
